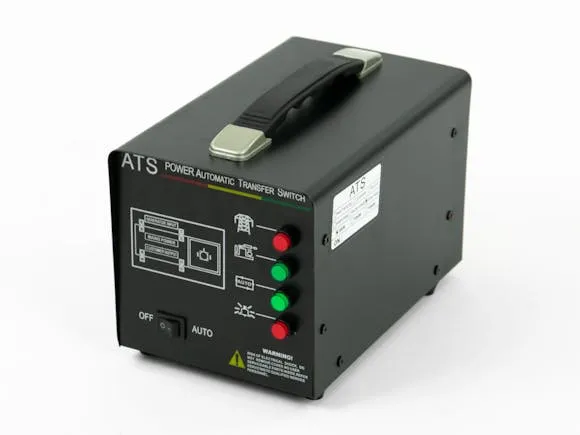

ATS System 5000W Single Phase

This automatic transfer switch allows on-off control of devices such as generators.

An ATS (automatic transfer switch) is used to change the power source to a secondary source, usually a generator, in case of power failure. When there is a failure of the primary power source the ATS automatically starts the generator and switches the input power to the generator. When the primary power source is restored the ATS resets the primary input.

Note: Your generator requires an ATS socket to operate this switch.

FEATURES
• Hour meter
• Electric start key switch
• Oil alert lamp
• 2 Year Warranty

SPECIFICATIONS
Voltage: 230V
Maximum power output: 5kW
Maximum current: 21A
Transfer delay time: 2-5 seconds
Return delay: 10 - 20 seconds
Connections: Generator monitor 5 pin connector
Dimensions: W 28cm x D 28cm H 22cm
Weight: 2.8kg
